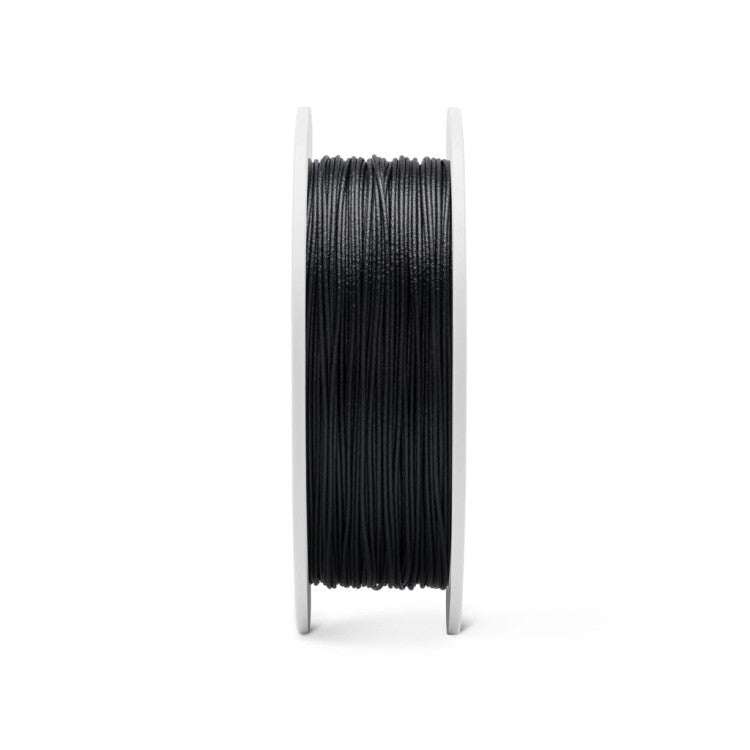

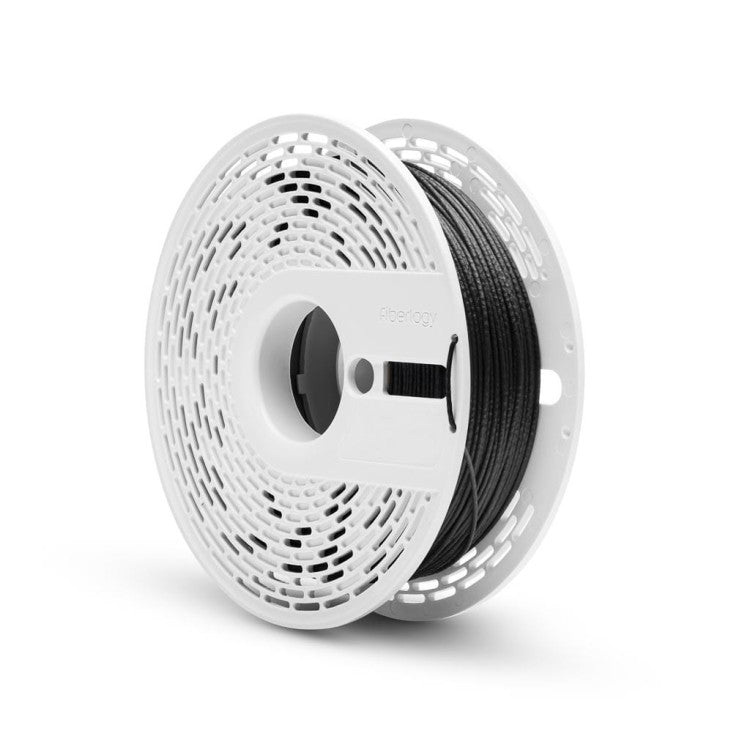

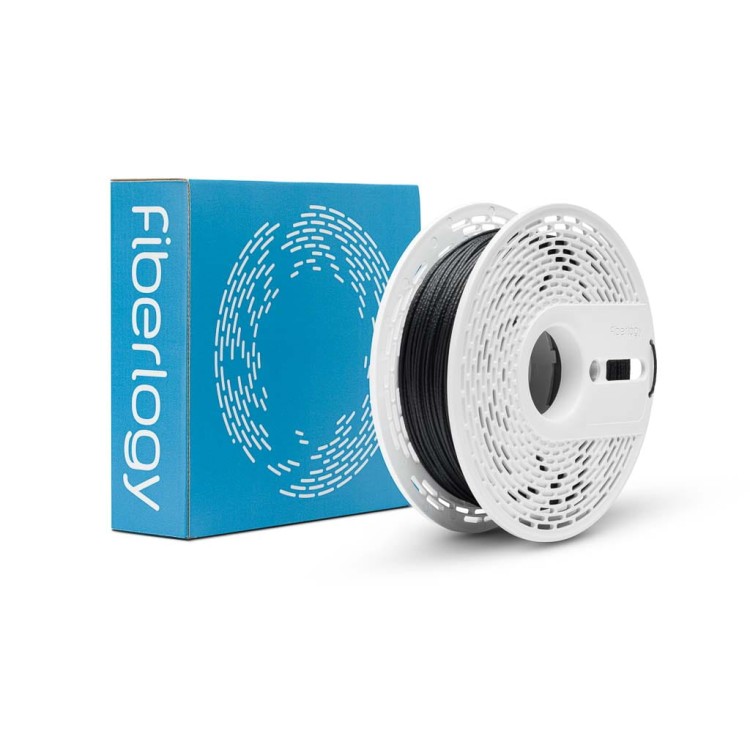

Nylon PA12+CF15 Filament - 1.75 mm - 0.5 kg
Fiberlogy Nylon PA12+CF is an advanced technical filament designed for the most demanding engineering and industrial projects. Based on Nylon PA12 reinforced with 15% carbon fiber, it offers unique mechanical and functional properties.
Thanks to the carbon fiber content, the filament features significantly higher stiffness and mechanical strength while reducing the weight of components. This makes the printed parts both lightweight and extremely durable.
Compared to standard Nylon PA12, the carbon fiber version offers improved heat resistance and reduced shrinkage during printing. As a result, it is easier to achieve precise, dimensionally stable prints, even with complex geometries.
Fiberlogy PA12+CF is a filament dedicated to professionals. It is perfect for use in:
-
the automotive industry – for lightweight yet durable structural components,
-
engineering and mechanics – for functional prototypes and technical parts,
-
aerospace and drones – where low weight and high durability are key,
-
the production of final elements that must combine aesthetics, strength, and resistance to external conditions.
For best results when printing with Nylon PA12+CF, it is recommended to use a 3D printer with a closed and heated chamber to ensure process stability and high-quality finished models.
Print settings
- Printing temperature255-270°C
- Bed temperature110°C
- Build surfaceSmooth PEI + adhesive; Textured PEI + adhesive; Glass + adhesive
- Drying conditions80°C / 4h
- Enclosurenot required
- Cooling fan0-10%
Tips and recommendations
- Nozzle:The material is highly abrasive. A hardened steel or ruby nozzle is required.
- Handling:Use gloves (micro-damage to the skin may occur). When handling, use a dust mask and safety goggles.
Properties
- Density1.07 g/cm³
- Tensile Strength @ Break120 MPa (ISO 527)
- Tensile Modulus7300 MPa (ISO 527)
- Elongation @ Break5% (ISO 527)
- Charpy Impact Strength (Notched) @ 23℃15 kJ/m2 (ISO179)
- Charpy Impact Strength (Unnotched) @ 23℃75 kJ/m2 (ISO179)
- Heat Distortion Temperature @ 0.45 MPa170°C (ISO 75)
- Heat Distortion Temperature @ 1.8 MPa150°C (ISO 75)
